BS2-2222-2RS5/VT143 Bearing Sferische Rollagers tekening en technische gegevens:
| Sferische rollagers: BS2-2222-2RS5/VT143 die sferische rollagers 110mm*200mm*63mm draagt |
| Sferische rollagers Lagernummer: BS2-2222-2RS5/VT143 |
| Grootte (mm): 110 mm * 200 mm * 63 mm; |
| Boringdiameter (mm): 110 |
| Buitendiameter (mm): 200 |
Breedte (mm): 63 |
M -7.60 kg / Gewicht |
SKF Sferische rollager BS2-2222-2RS5/VT143 die Sferische rollagers 110mm*200mm*63mm draagt

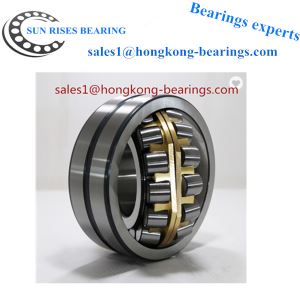

BS2-2222-2RS5/VT143 Lager Sferische Rollagers 110mm*200mm*63mm Voorraad foto's:
We hebben veel SKF Lagers op voorraad:
| Hoofdafmetingen | Basisbelastingsclassificaties | Vermoeidheidslimiet | Snelheidsclassificaties | Aanduiding | ||||
| dynamisch | statisch | Referentie snelheid: | Snelheid beperken | |||||
| d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | Pu[kN] | [omw/min] | [omw/min] | |
| 110 | 170 | 60 | 437 | 620 | 67 | 2 400 | 3 600 | 24022 CC/W33 |
| 110 | 170 | 60 | 437 | 620 | 67 | 2 400 | 3 600 | 24022 CCK30/W33 |
| 110 | 170 | 60 | 438 | 620 | 67 | 1 600 | 24022-2RS5/VT143 | |
| 110 | 180 | 56 | 450 | 585 | 61 | 2 800 | 3 600 | 23122 CC/W33 |
| 110 | 180 | 56 | 450 | 585 | 61 | 2 800 | 3 600 | 23122 CCK/W33 |
| 110 | 180 | 56 | 451 | 585 | 61 | 800 | 23122-2CS5/VT143 | |
| 110 | 180 | 56 | 451 | 585 | 61 | 800 | 23122-2CS5K/VT143 | |
| 110 | 180 | 69 | 539 | 750 | 78 | 2 000 | 3 000 | 24122 CC/W33 |
| 110 | 180 | 69 | 539 | 750 | 78 | 2 000 | 3 000 | 24122 CCK30/W33 |
| 110 | 180 | 69 | 540 | 750 | 78 | 630 | 24122-2CS5/VT143 | |
| 110 | 200 | 53 | 572 | 640 | 63 | 3 000 | 4 000 | 22222 E |
| 110 | 200 | 53 | 572 | 640 | 63 | 3 000 | 4 000 | 22222 EK |
| 110 | 200 | 63 | 572 | 640 | 63 | 1 500 | BS2-2222-2RS5/VT143 | |
| 110 | 200 | 63 | 572 | 640 | 63 | 1 500 | BS2-2222-2RS5K/VT143 | |
| 110 | 200 | 69.8 | 626 | 765 | 76.5 | 2 200 | 3 200 | 23222 CC/W33 |
| 110 | 200 | 69.8 | 626 | 765 | 76.5 | 2 200 | 3 200 | 23222 CCK/W33 |
| 110 | 200 | 69.8 | 627 | 765 | 76.5 | 640 | 23222-2CS5/VT143 | |
| 110 | 200 | 69.8 | 627 | 765 | 76.5 | 640 | 23222-2CS5K/VT143 | |
| 110 | 240 | 80 | 989 | 1 120 | 100 | 2 000 | 2 800 | 22322 E |
| 110 | 240 | 80 | 989 | 1 120 | 100 | 2 000 | 2 800 | 22322 EJA/VA405 |
| 110 | 240 | 80 | 989 | 1 120 | 100 | 2 000 | 2 800 | 22322 EJA/VA406 |
| 110 | 240 | 80 | 989 | 1 120 | 100 | 2 000 | 2 800 | 22322 EK |
| 110 | 240 | 80 | 989 | 1 120 | 100 | 2 000 | 2 800 | 22322 EKJA/VA405 |
| 120 | 180 | 46 | 366 | 500 | 52 | 3 200 | 4 000 | 23024 CC/W33 |
| 120 | 180 | 46 | 366 | 500 | 52 | 3 200 | 4 000 | 23024 CCK/W33 |
| 120 | 180 | 46 | 367 | 500 | 52 | 1 400 | 23024-2RS5/VT143 | |
| 120 | 180 | 60 | 456 | 670 | 68 | 2 400 | 3 400 | 24024 CC/W33 |
| 120 | 180 | 60 | 456 | 670 | 68 | 2 400 | 3 400 | 24024 CCK30/W33 |
| 120 | 180 | 60 | 457 | 670 | 68 | 670 | 24024-2CS5/VT143 | |
| 120 | 200 | 62 | 534 | 695 | 71 | 2 600 | 3 400 | 23124 CC/W33 |
